Triggers - events that are defined by the user, for example: The CPU Utilization of the database machine is over 90%. Actions - the measures that the user defines for the system to take if a certain triggers (conditions) are met.

Trigger Types

  • Query pattern - the action(s) will be triggered when the current query matches the given query pattern.
  • Query Duration - the action(s) will be triggered when the current query duration is greater than the specified duration.
  • User(s) - the action(s) will be triggered when a user or users are connecting to the database.
  • IP(s) - The action(s) will be triggered when a host with a specific IP address connects to the database.
  • Time - The action(s) will be triggered in a specific time frame only.

Trigger Operator Types

  • In - this operator is relevant to the Trigger types: User(s) and IP(s), and allows us to define a few IP addresses or Users that will trigger the action(s) defined.
  • Not In - similar to the operator In but it is used for triggering an action when the IPs or Users are not included in the given list.
  • Like - this operator is relevant to the Trigger type: Query Pattern, and allows you to define a pattern using the !@! wildcard to match queries. The !@! wildcard represents any content in the query. Pattern matching is case-insensitive and semicolons are automatically removed. - Examples: \
    • select !@! from users; - matches any SELECT from users table
    • delete from !@!; - matches any DELETE without WHERE clause
    • update admin set !@!; - matches any UPDATE on admin table
  • Not Like - similar to the operator Like but it is used for triggering an action when the given query pattern does not include the current query.
  • Is Greater Than - this operator is relevant to the Trigger type Query Duration.

Trigger Values

  • Query pattern - the string of the query pattern using !@! wildcard for matching any content. The system is case-insensitive and automatically removes semicolons before matching.
    • Use !@! to represent any content: select !@! from table_name;
    • Patterns must match query structure exactly (except case and semicolons)
  • Query Duration - the time above which the action will be triggered.
  • User(s) - a comma separated list of a User(s).
  • IP(s) - a comma separated list of a IP(s).
  • Time - start and end times of the trigger, with frequency options: daily, weekly, or monthly. The weekly option lets us choose specific days for the trigger, and the monthly option lets us select a specific day of the month.

Action Types

  • Block - Blocks the current request based on the trigger type and value.
  • Throttle - Throttle resources of the current request to a defined based on the trigger type and value.
  • Rate Limit - Limit the resources of the current request request to a defined based on the trigger type and value.
  • Rewrite - Change the current query request to a different request based on the action value.

Action Values

  • Block - No value.
  • Throttle - Limit the resources of the current request request to a defined based on the trigger type and value. All requests above the limit will be queued.
  • Rate Limit - Limit the resources of the current request request to a defined based on the trigger type and value. All requests above the limit will be ignored.
  • Rewrite - The query string that we replace the original query with.

Examples

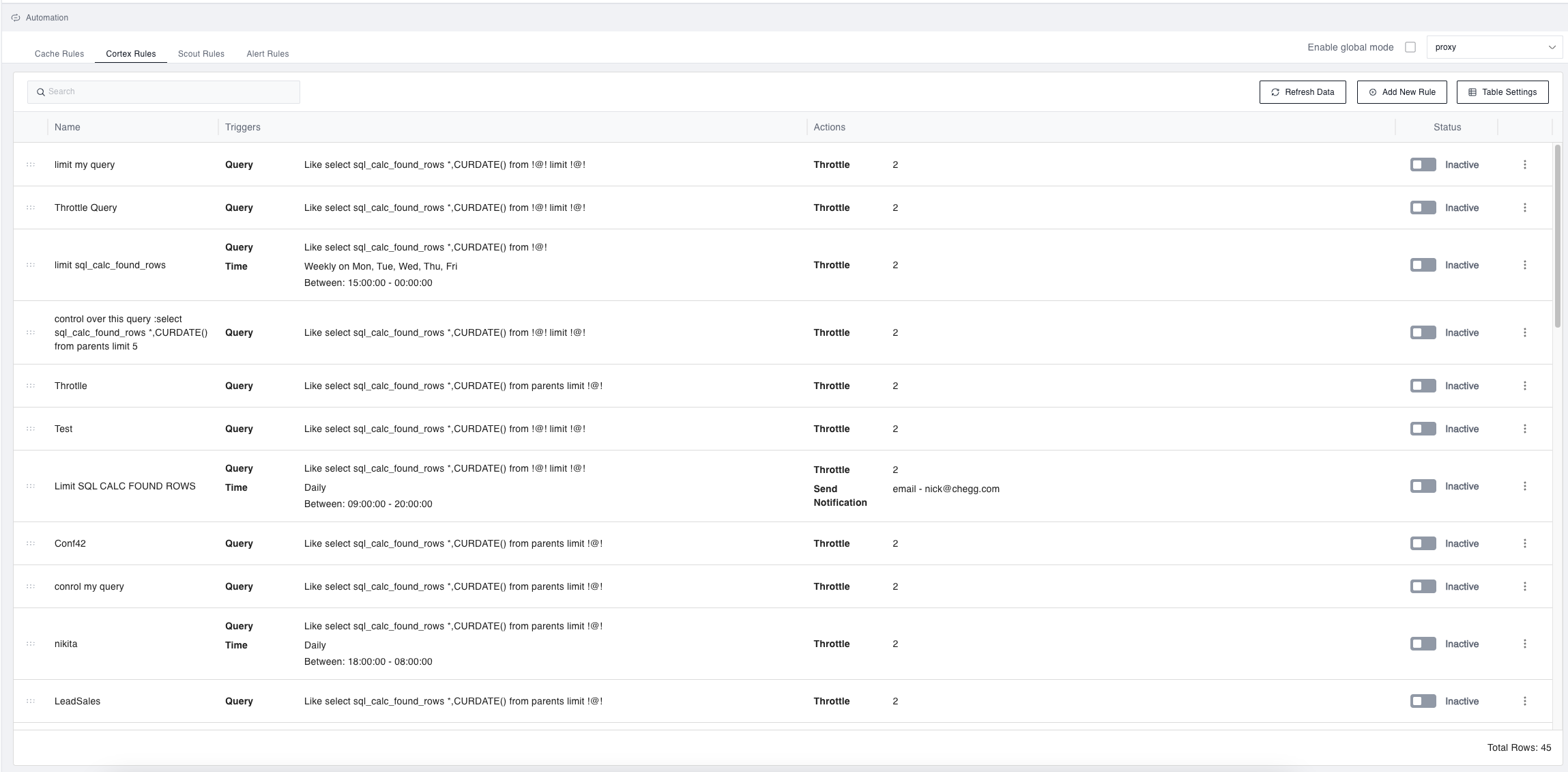

Cortex Rules List

Triggers and Actions

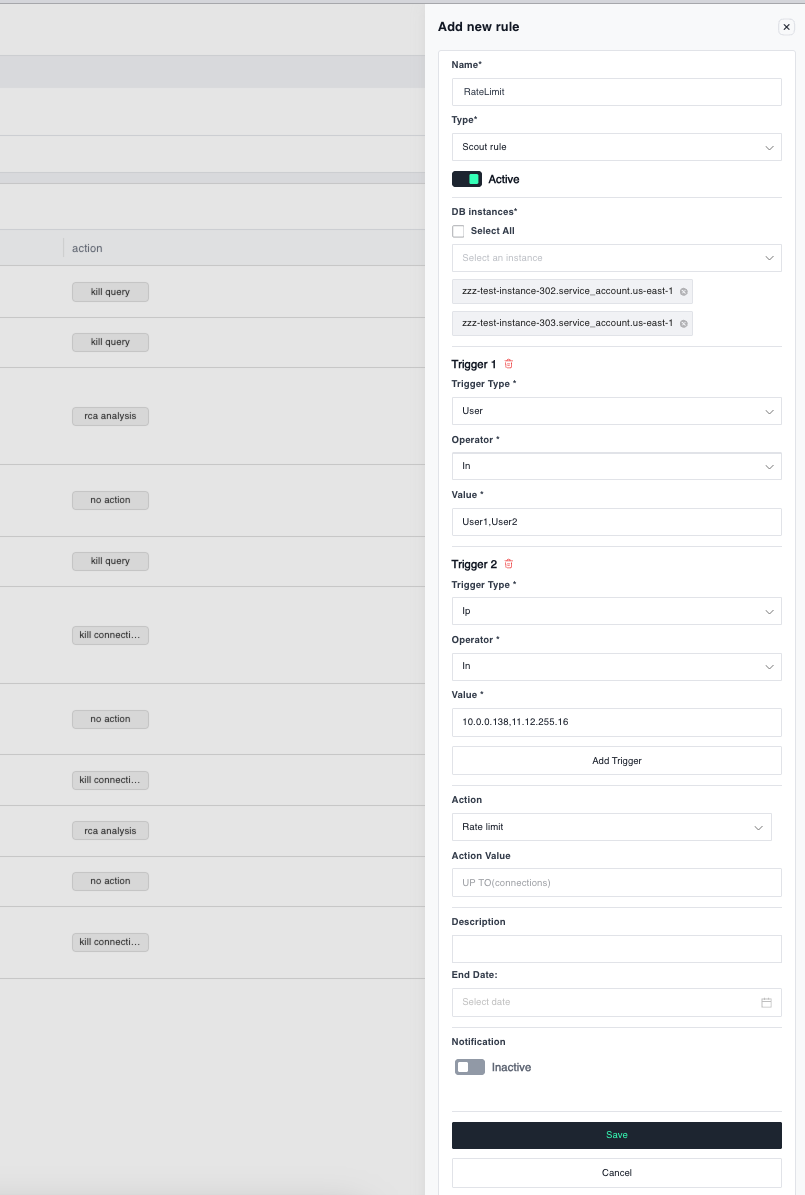

Rate Limit users and IPs

Triggers and Actions

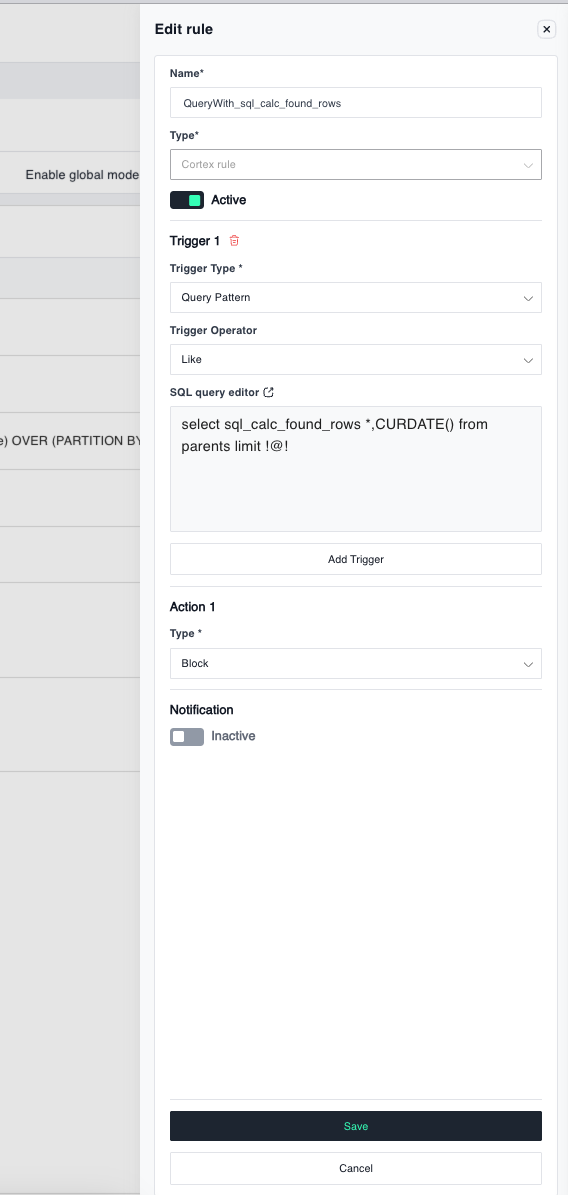

Block queries that with a specific query pattern

Triggers and Actions

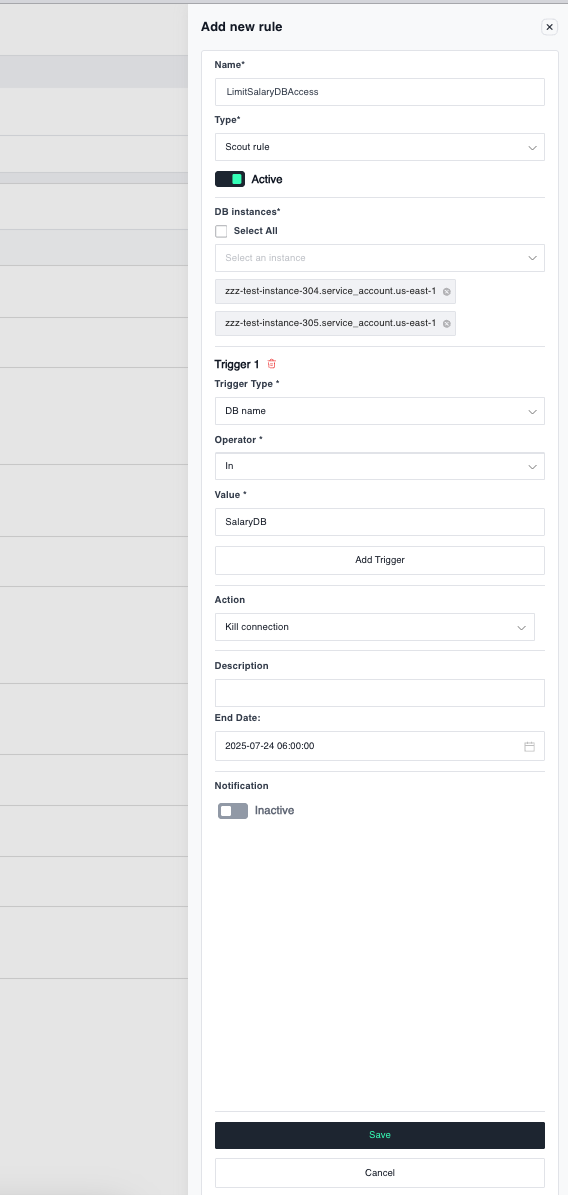

Limit Database Access

Triggers and Actions
