Cache triggers and actions

​

Cache configuration

• Global Cache State - Three modes are available:

  • All - Cache is enabled for all query requests
  • Partial - Cache is enabled only for specific queries defined by the cache rules
  • None - Cache is disabled for all query requests

• Invalidation Type - Relevant only for the All Global Cache State

  • Table Based - When the system receives a write query to a specific table, the cache will automatically invalidate all cache entries that use this specific table
  • TTL Based - The system will automatically invalidate an cache record after a defined amount time

• TTL - Relevant only for the All Global Cache State while using TTL mode. The value defines the automatic cache record invalidation time in milliseconds

​

Cache Rules

Partial Global Cache State - Allows us to define specific rules to cache a specific queries

• Match Type - The system will cache specific queries according to a pattern
• Invalidation Type
  • Table Based - When the system receives a write query to a specific table, the cache will automatically invalidate all cache entries that use this specific table
  • TTL - The system will automatically invalidate an cache record after a defined amount time
• TTL - Relevant only for the Invalidation type is TTL. The value defines the automatic cache record invalidation time in milliseconds
• Pattern - Allows us to define a pattern that can include a few queries.

​

Examples

​

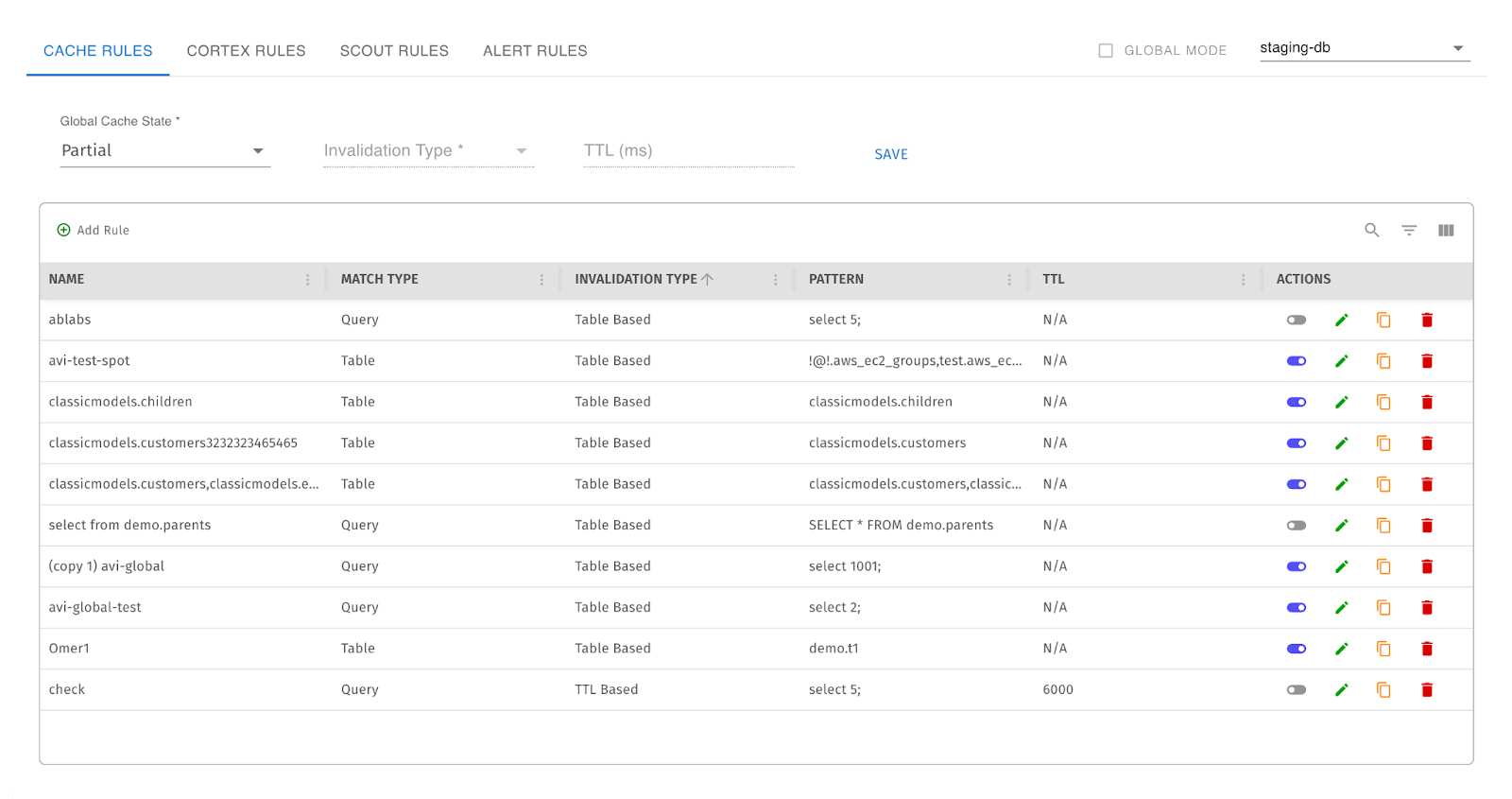

Cache Rules List

​

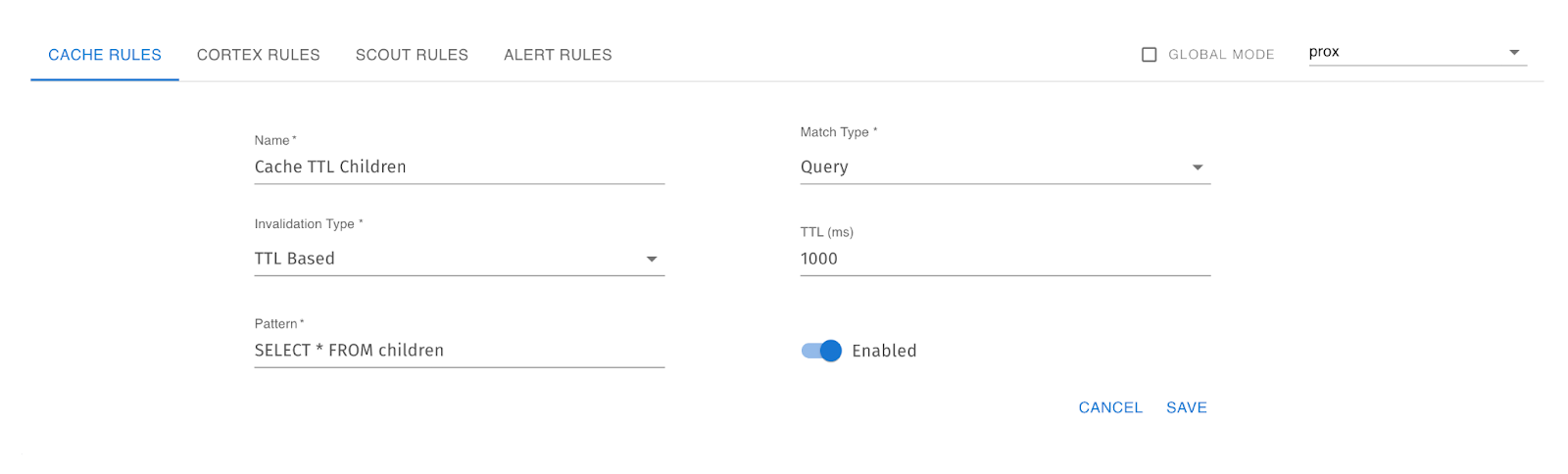

Cache TTL based for children table queries

​

Cache heavy read tables
